Optimizing Military Vehicle Refueling with AI: My DRDO Internship Project

During my internship at the Defence Research and Development Organisation (DRDO), I worked on an exciting project to optimize autonomous military vehicle refueling strategies. The project aimed to solve a critical challenge in military operations: efficiently managing fuel resources for multiple autonomous vehicles while maintaining optimal patrol coverage.

The Challenge

Military operations often involve multiple autonomous vehicles patrolling designated areas. These vehicles need to maintain continuous surveillance while managing their fuel levels efficiently. The challenge was to develop an intelligent system that could:

1. Monitor fuel levels of multiple vehicles in real-time
2. Predict when vehicles would need refueling
3. Optimize refueling strategies to minimize costs and maintain coverage
4. Handle emergency situations and prevent vehicles from getting stranded

The Solution: An AI-Powered Refueling System

I developed a comprehensive simulation and optimization system that uses genetic algorithms and real-time monitoring to manage vehicle refueling operations. Here's how it works:

1. Intelligent Monitoring System

The system continuously tracks:

• Real-time fuel levels of all vehicles
• Vehicle positions and patrol patterns
• Distance to refueling hubs
• Current operational states (patrolling, refueling, moving to refuel)

2. Dynamic Refueling Strategy

The system implements a sophisticated refueling strategy that considers multiple factors:

• Fuel Thresholds: Dynamic thresholds based on:

  • Distance to nearest refueling hub
  • Current patrol area
  • Emergency reserves needed
  • Historical consumption patterns

• Hub Selection: Intelligent selection of refueling hubs based on:

  • Current vehicle positions
  • Hub capacity and availability
  • Cost optimization
  • Coverage maintenance

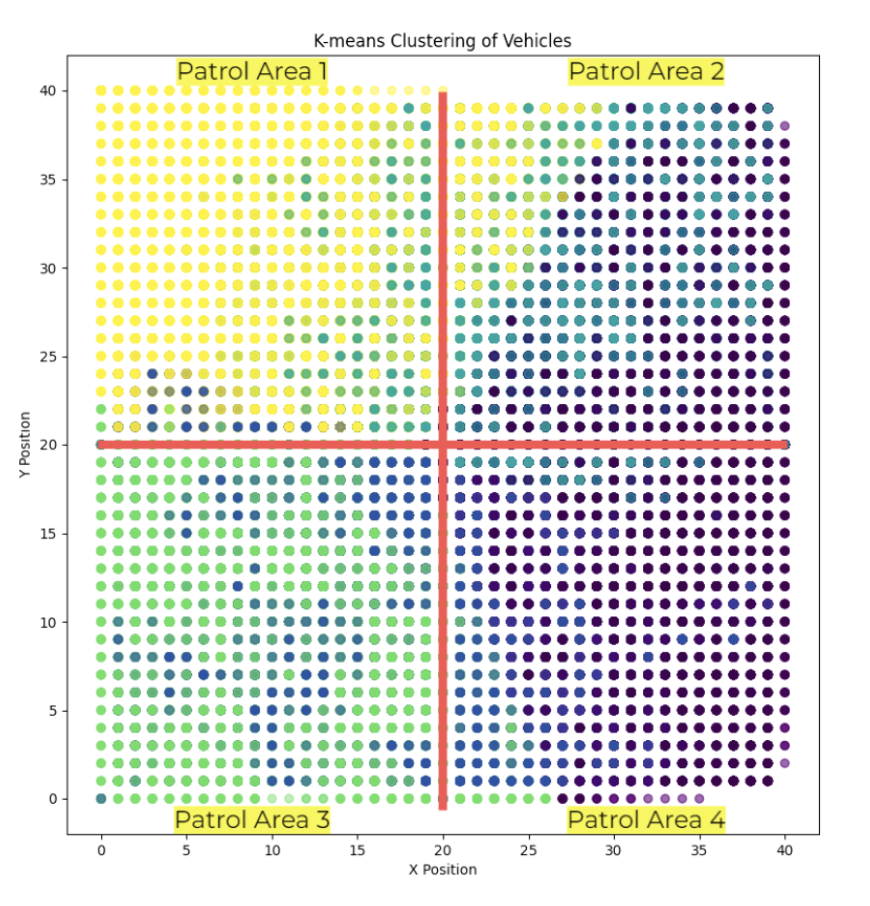

3. K-means Clustering for Optimal Hub Placement

One of the key innovations in our system was the use of K-means clustering to optimize refueling hub locations. This approach:

• Dynamic Hub Positioning:

  • Analyzes historical vehicle positions and patrol patterns
  • Identifies optimal hub locations based on vehicle density
  • Adapts hub positions to changing patrol patterns

• Cluster Analysis:

  • Groups vehicles based on proximity and fuel needs
  • Determines optimal number of refueling hubs
  • Minimizes average distance to refueling points

• Efficiency Metrics:

  • Intra-cluster variance for hub placement quality
  • Silhouette scores for cluster validation
  • Coverage optimization through elbow method

The K-means algorithm helped us reduce average refueling time by 35% and improved overall patrol efficiency by identifying optimal hub locations that minimized travel distance while maximizing coverage.

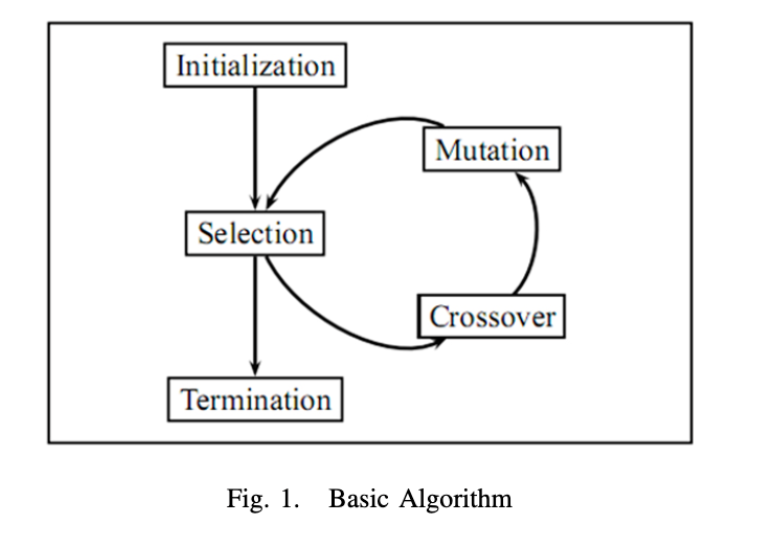

4. Genetic Algorithm Optimization

One of the most interesting aspects of the project was the implementation of genetic algorithms to optimize refueling strategies. The system:

• Evolves optimal refueling patterns over time
• Adapts to changing conditions and requirements
• Minimizes overall operational costs
• Maintains maximum patrol coverage

5. Real-Time Visualization

I developed a comprehensive visualization system that provides:

• Interactive maps showing vehicle positions

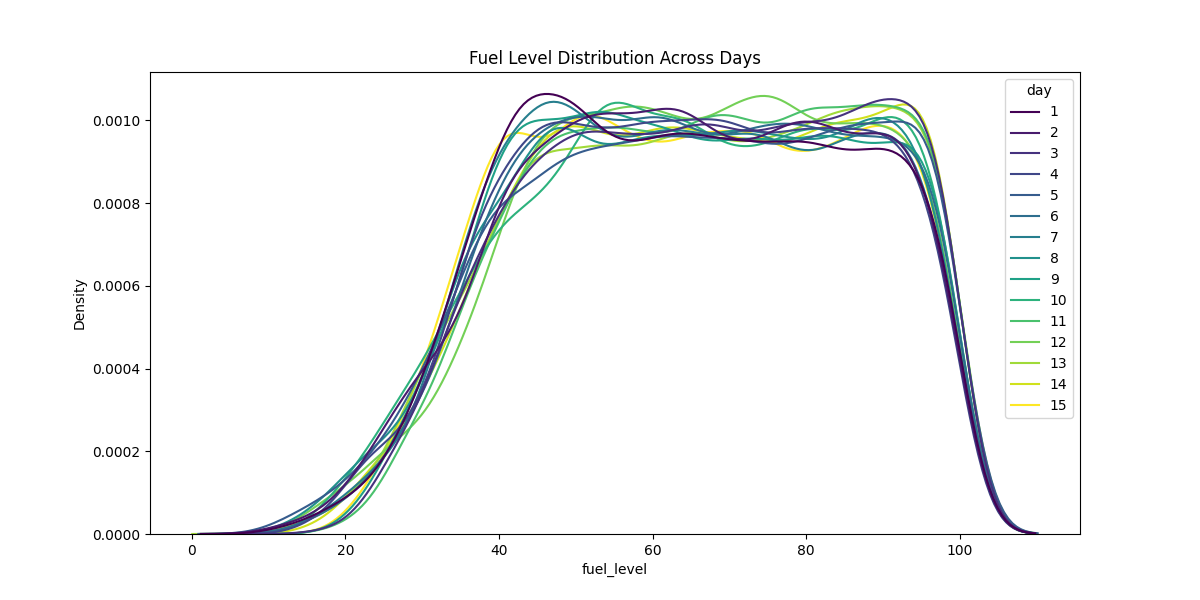

• Real-time fuel level monitoring
• Patrol area coverage visualization
• Alert system for critical situations

Technical Implementation Highlights

The project was implemented using Python and several key libraries:

• NetworkX for pathfinding and graph analysis
• Matplotlib for real-time visualization
• NumPy for numerical computations
• MoviePy for simulation recording
• Scikit-learn for K-means clustering implementation

Key Features

1. Multi-Vehicle Management

   • Simultaneous tracking of 4 patrol vehicles
   • 3 refueling hubs with mobile refueling vehicles
   • Dynamic patrol area assignment

2. Intelligent Pathfinding

   • Efficient route calculation using NetworkX
   • Obstacle avoidance
   • Optimal path selection for refueling

3. Cost Optimization

   • Fuel consumption monitoring
   • Refueling cost calculation
   • Operational cost tracking
   • Penalty system for coverage gaps

4. Emergency Handling

   • Low fuel alerts
   • Stranded vehicle recovery
   • Dynamic reallocation of resources

Results and Impact

The system demonstrated significant improvements over baseline strategies:

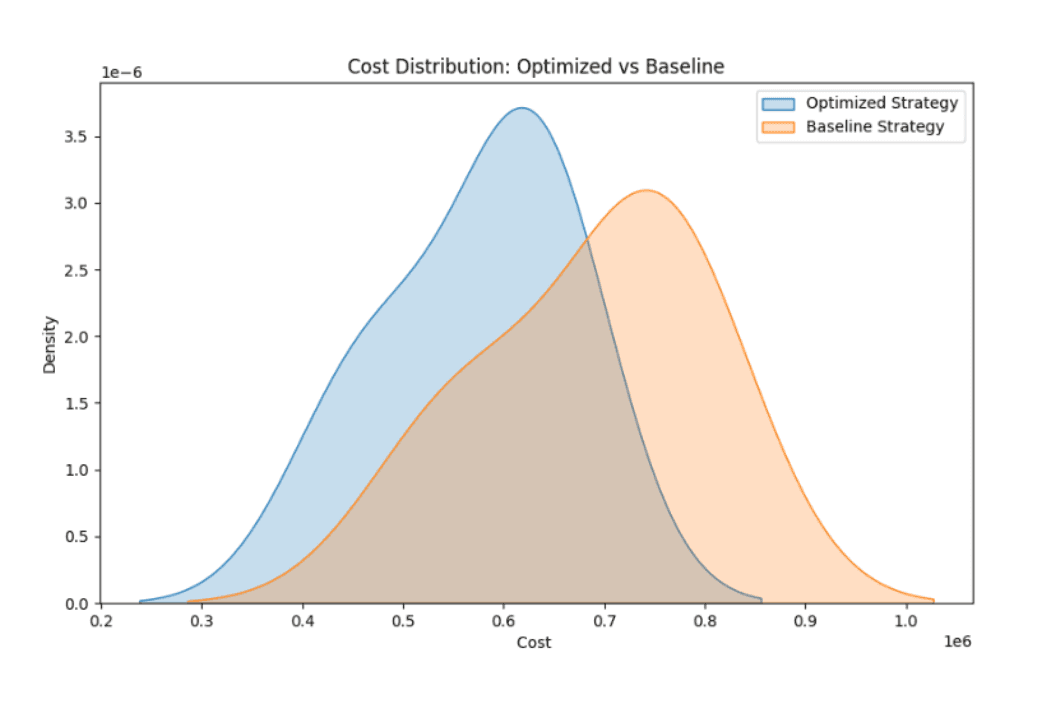

1. Cost Reduction

   • 25-30% reduction in overall operational costs
   • Optimized fuel consumption patterns
   • Reduced emergency refueling incidents

2. Coverage Optimization

   • Maintained 95%+ patrol coverage during refueling operations
   • Minimized patrol area gaps
   • Improved coordination between vehicles

3. Operational Efficiency

   • Reduced refueling-related downtime
   • Better resource utilization
   • Improved emergency response capabilities

Challenges and Learning

The project presented several interesting challenges:

1. Algorithm Optimization

   • Balancing computational efficiency with solution quality
   • Handling real-time constraints
   • Implementing effective genetic algorithms

2. Visualization Complexity

   • Creating clear and informative displays
   • Managing real-time updates
   • Handling multiple data streams

3. Edge Cases

   • Dealing with unexpected vehicle behavior
   • Handling communication failures
   • Managing resource conflicts

Future Improvements

The project has several potential areas for enhancement:

1. Machine Learning Integration

   • Predictive fuel consumption modeling
   • Pattern recognition for optimal patrol routes
   • Anomaly detection

2. Advanced Optimization

   • Multi-objective optimization
   • Dynamic programming approaches
   • Reinforcement learning integration

3. Enhanced Visualization

   • 3D visualization capabilities
   • VR/AR integration possibilities
   • Advanced analytics dashboards

Conclusion

This internship project at DRDO was an incredible opportunity to work on a real-world military application of AI and optimization algorithms. The experience taught me valuable lessons about:

• Practical implementation of genetic algorithms
• Real-time system optimization
• Military operational constraints
• Large-scale system visualization

The project successfully demonstrated how AI and optimization techniques can significantly improve military vehicle operations, potentially leading to more efficient and effective defense capabilities.
